NOTE: The images are not current. The delivered version has puncture-proof wheels made of plastic with rubber coating!

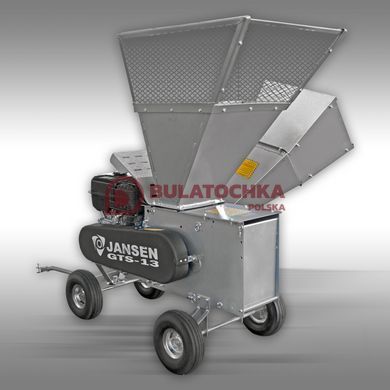

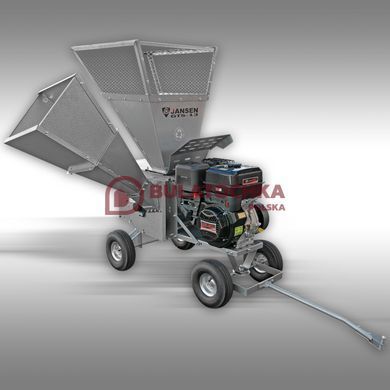

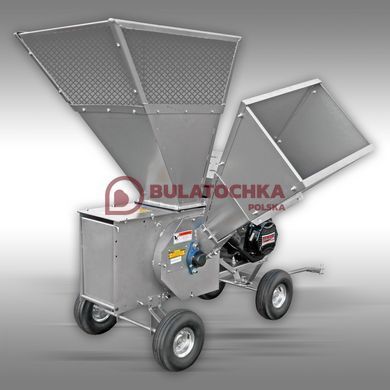

This shredder with on-board petrol engine has been specially produced according to our specifications. It will make work a lot easier for you. Thanks to its powerful engine you are independent from the power grid and can use the unit in remote locations. In contrast to most other units of its kind, this shredder conforms with the most recent European Safety guidelines and standards. The shredder has a sufficiently long feed hopper as according to regulations. Many competing products do not fulfil this requirement and are consequently not permitted for retail. A minimum feed hopper length is defined in machine guidelines as 850 mm. The shredder chops up chippings into very small pieces; Both branch or bush-like material can be fed into it.

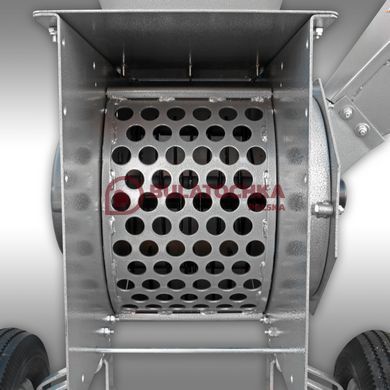

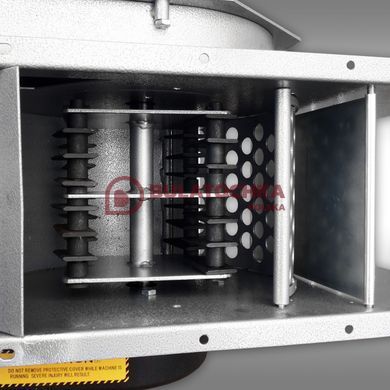

The upper, large hopper is suited for bush-like material and allows you to cut branches of up to 3-4 cm (depending on wood type). This is fed in nearly automatically and is chopped up by 24 floating, specially hardened hammer blades (mounted on 4 rotating axles). The hammer blades have been sharpened on the sides into blade form. The lateral hopper is suitable for larger branches of a diameter of up to 9 cm. These are chopped up by a cutting assembly. The 15 HP engine can be started easily using the recoil starter and has an automatic low oil cut-off system. Performance has been optimally geared toward the size and cutting assembly of the shredder, which guarantees a smooth deployment. Many shredders, which have not been suitably designed, frequently become blocked and choke the engine. This does not happen with our unit. Using the supplied towing hook, the unit can be towed with ease to any location. We have had this product in our catalog for years It has been tried and tested hundreds of times.
Compare our machines with competing products! You won’t find anything comparable. We didn’t only develop these devices ourselves, but also offer excellent service (master technicians workshop) and spare parts. We have almost every part in stock. In the event of questions or problems we are only a phone call away. With us you speak with knowledgeable staff and not with “call-centre agents”. We have almost all of our products assembled and ready for operation in our exhibition halls. We would love for you to come by to test them!
Technical specifications:

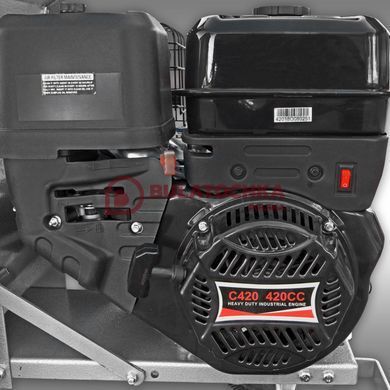

4-stroke OHV engine, 420 ccm, 15 HP Centrifugal clutch Recoil starter Solid rubber wheels
Belt dimensions: 17x1500
Rotation speed: 2100 rpm
Maximum diameter of material to be shredded: 80-90 mm
Total weight (dry): 100 kg
Petrol Tank capacity: 6 litres
Fuel consumption: Approx. 1.2 – 1.5 l/h
Dimensions: 160x120x140 cm (LxWxH)
Measurements of packaging: 161x62x61 cm (LxWxH)
Weight including packaging: 130 kg
Note: The device is delivered well packed in a wooden crate. You should allow approx. 1-2 hours for final assembly. Assembly is easy; you will need approx. 1 litre of engine oil for the engine. For this purpose we recommend multi-grade oil of classification 10W40 or 15W40. Assembly instructions and an instruction manual are included. Should you have any further questions, please do not hesitate to contact us.
